商品の詳細:
お支払配送条件:
|
| メインシリンダーの定格力: | 36000KN | 定格ブランクホルダー力: | 12000KN |
|---|---|---|---|
| テーブルサイズ: | 5000×5000 | 関数: | ホットプレスタンクディッシュ |
| 目的: | タンクを作る |
Model: YL27-3600t/1200t

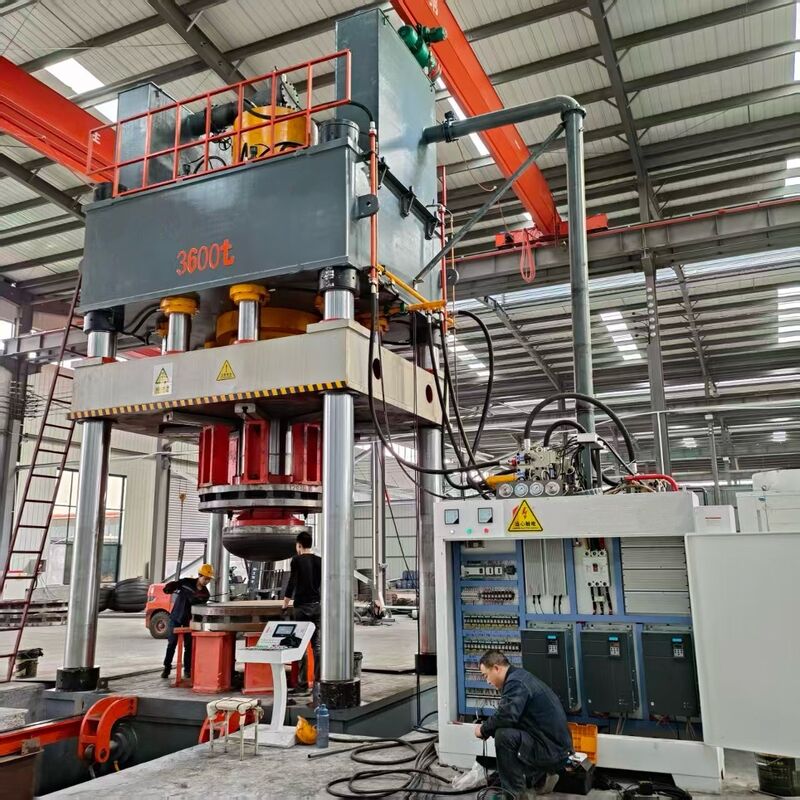

Name: Hot Press Head Forming Machine
|
No. |
Item |
Unit |
Specification |
|---|---|---|---|
| 1 | Rated force of main cylinder | kN | 36000 |
| 2 | Rated blank holder force | kN | 1200 |
| 3 | Rated ejection force | kN | 2000 |
| 4 | Working hydraulic pressure | MPa | 25 |
| 5 | Effective stroke of main cylinder | mm | 2800 |
| 6 | Stroke of blank holder cylinder | mm | 1600 |
| 7 | Ejection stroke | mm | 1600 |
| 8 | Max. distance from lower surface of main cylinder ram to worktable | mm | 4400 |
| 9 |
Effective size of worktable Inner distance between left & right columns Inner distance between front & rear columns |
mm mm |
5000 5000 |
| 10 | No-load descending speed of main cylinder | mm/s | 150 |
| 11 | Forming speed | mm/s | 30-40 |
| 12 | Return speed (main cylinder) | mm/s | 120 |
| 13 | Fast descending speed of blank holder beam | mm/s | 180 |
| 14 | Return speed (blank holder) | mm/s | 100 |
| 15 | Ejection speed | mm/s | 20-98 |
| 16 | Retracting speed | mm/s | 90 |
| 17 | Motor power for main cylinder | kW | 110 kW × 10 |
| 18 | Servo motor power for blank holder cylinder | kW | 75 kW × 1 |
| 19 | Oil pump displacement | L/Min | 250 |
3. List of Main Supporting Components & Manufacturers
|
No. |
Component Name |
Manufacturer |
|---|---|---|
| 1 | Servo motor | Inovance / Veichi |
| 2 | Oil pump | Jiangsu Hengyuan |
| 3 | Electric motor | Weihai Guifeng |
| 4 | Cartridge valve | Jining, Shandong |
| 5 | Pre-fill valve | Nantong Huadong |
| 6 | Main electrical components | Delixi |
| 7 | Suction oil filter | Wenzhou Jingtong |
| 8 | PLC | Xinje |
4. Machine warrantee :
The equipment is covered by a 1-year warranty. Within the warranty period, the Supplier shall provide timely free maintenance for all equipment faults, and replace damaged parts free of charge if the damage is not caused by human error.
After the warranty expires, the Supplier will continue to offer comprehensive and preferential technical support as well as spare parts supply to the Buyer.
