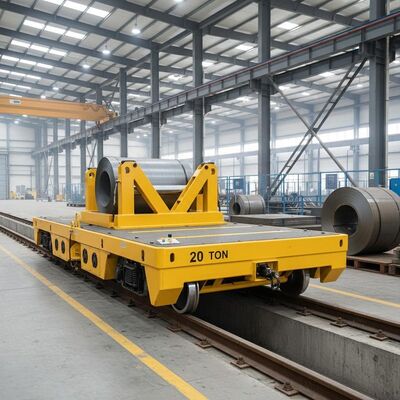

20 Ton Battery Powered Rail Transfer Cart for Steel Coil and Mold Handling

The KPX 20 Ton Heavy Duty Battery Rail Transfer Cart is an industrial-grade material handling system designed for high-load steel coil, mold, and heavy equipment transport. It operates on a battery-powered electric drive system and runs on fixed steel rails to ensure precise, stable, and safe horizontal movement.

This model is widely used in steel plants, mold manufacturing workshops, automotive production lines, and heavy machinery factories. With its reinforced frame and high-torque motor system, it is engineered for continuous operation in demanding industrial environments.

Industrial manufacturing facilities often struggle with:

• Extremely heavy molds and coils exceeding forklift limits
• Unsafe manual lifting operations
• Inefficient crane-only logistics flow
• High downtime between production stations
• Poor directional control during transport

These issues reduce production efficiency and increase safety risks in heavy-load environments.

The KPX 20 Ton Rail Transfer Cart provides a reliable industrial solution:

• 20-ton high-load capacity for heavy industrial components
• Rail-guided system ensures stable directional movement
• Battery-powered operation eliminates cable constraints
• Reinforced steel frame supports long-term heavy-duty usage
• Custom fixtures (V-frame / U-frame / mold table) ensure load stability
• Dual control system improves operational flexibility
• Emergency braking and alarm system enhance safety compliance

It replaces inefficient crane-only workflows with continuous ground-level transport efficiency.

This 20-ton transfer cart is widely used in:

• Steel coil handling workshops
• Large mold transportation systems
• Automotive manufacturing plants
• Heavy machinery assembly lines
• Shipbuilding and offshore engineering
• Foundry and casting industries
• Industrial warehouse logistics

It is ideal for large-scale heavy component transfer between production zones.

1. Battery system provides stable DC power supply
2. Electric motor drives reducer and wheel assembly
3. Rail system ensures straight-line movement accuracy
4. Operator controls forward/reverse via remote or pendant
5. Load is fixed using customized fixture structures
6. Electric braking system ensures safe stopping
7. Alarm system activates during movement for safety awareness

This system enables controlled, repeatable heavy-load transport with minimal human intervention.

When selecting a 20-ton transfer cart, consider:

• Maximum load weight and load center position
• Type of transported materials (coil, mold, steel structure)
• Workshop rail layout and turning requirements
• Indoor or outdoor working environment
• Required automation level (manual vs semi-automatic)
• Safety compliance requirements
• Battery endurance vs cable-powered system

For mold transport, precision positioning and anti-vibration design are essential.
